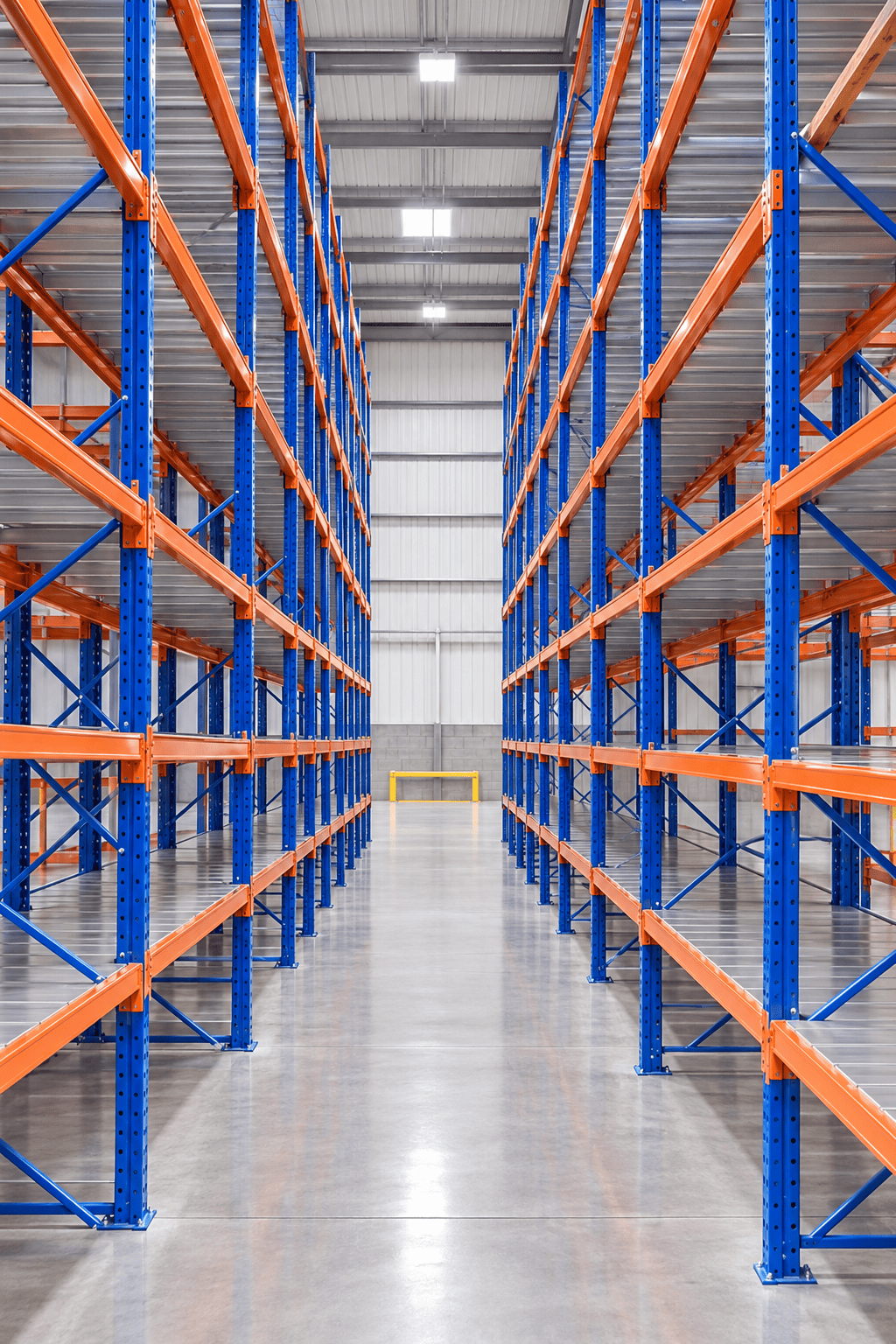

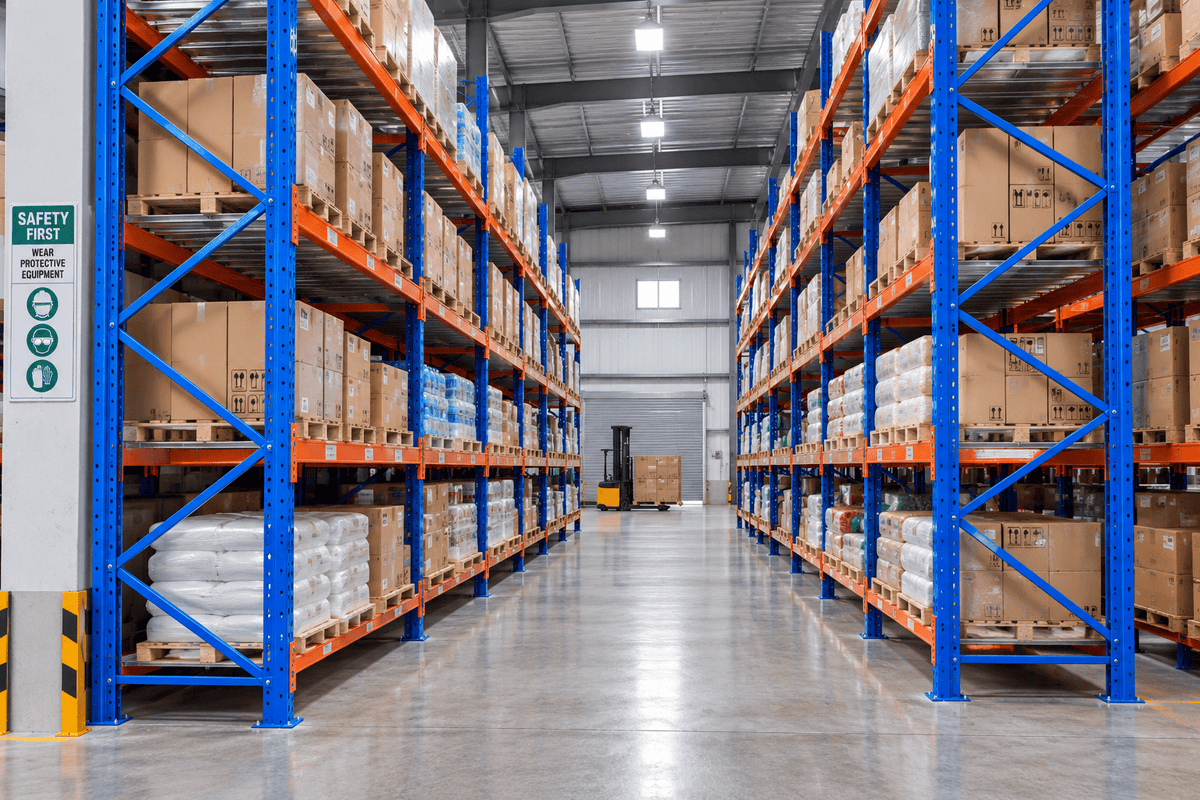

VERY NARROW AISLE PALLET RACKS

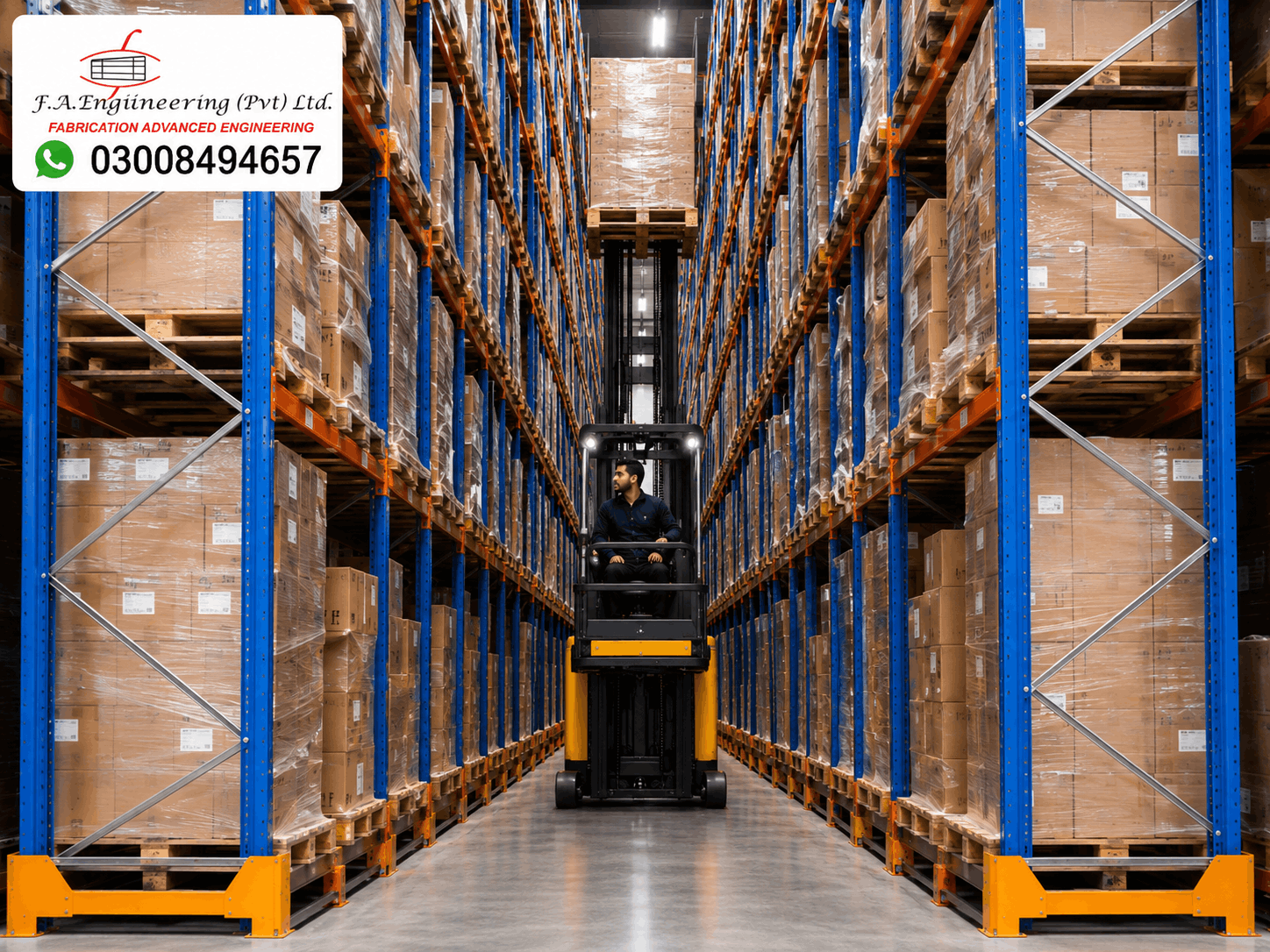

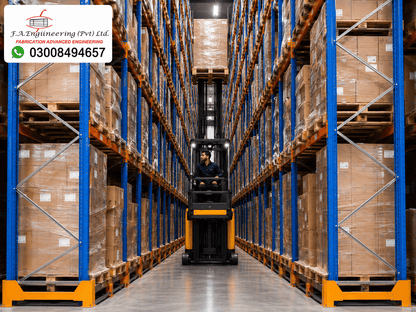

Very Narrow Aisle pallet racks are a high-density storage system designed to maximize warehouse space by significantly reducing the width of aisles between rack rows — typically down to 5–6 feet, compared to 10–12 feet in conventional racking layouts. This is made possible by using specialized material handling equipment, such as turret trucks, swing-reach trucks, or wire/rail-guided forklifts, that can lift and place pallets without needing to turn within the aisle.

Key Features:

• Space efficiency – Narrower aisles allow more racking to fit in the same footprint, increasing storage capacity by up to 40–50% compared to standard wide-aisle systems.
• Guided access – Uses wire guidance, rail guidance, or laser guidance systems to keep forklifts precisely aligned within the tight aisle.
• High-density selective storage – Retains selective access to every pallet (unlike drive-in racking), making it ideal for operations needing fast, direct SKU access.
• Tall stacking capability – Often paired with high-bay warehouses, allowing storage heights of 30–40+ feet.
• Ideal for – Cold storage facilities, distribution centers, and warehouses with high SKU counts where both storage density and inventory accessibility are priorities.

Trade-offs: VNA systems require a higher upfront investment in specialized equipment and guidance infrastructure, and the trucks used are generally limited to operating within their designated aisles, reducing flexibility compared to standard forklifts.
